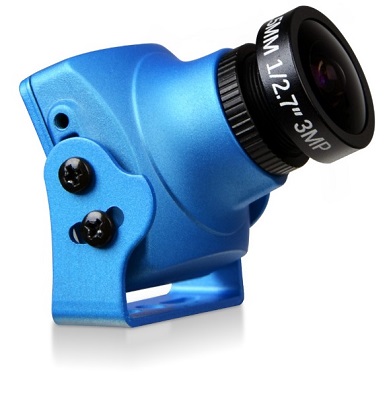

Product name:FOXEER ARROW V3 HS1195 Built-in OSD Inside FPV Camera with 2.5mm Lens
Product code:HSM-FX004
Specifications:
CCD : 1/3” Sony SUPER HAD II CCD
Pixel : PAL: 976(H) x 494(V)
TV System : PAL
Resolution : 650TVL(b/w), 600tvl(color)
OSD : Edit Name, Power, Flying time
Synchronization : internal synchronize
Shutter Speed : (CCD IRIS) PAL: 1/50~1/100000 sec
Noise > 60 (AGC OFF)
Video Out 75ohm, synchronize
Min. Illumination 0.01Lux
Auto Gain Off/Low/Mid/High
Back Light Compensation (BLC) Off /Back light compensation/ Strong light suppression
Private shading (PRIVACY) 1~8 private shading area
Motion Detection (MD) On/ Off (Multi level sensitivity settable)
Auto White Balance Manual / Auto / Auto track
Mirror Horizontal Mirror optional
Negative Positive / Negative optional
Color to B&W Auto
DNR 2DNR
WDR D-WDR
Day / Night Shift Auto/ Color/ B&W
Menu (OSD) English menu
White Dot Repair Support
Image Adjustment Support
Camera Title Support
Power Requirement DC5V~35V
Working Temperature -10 C ~ 50 C
Working Humidity 20~80%
Storage Temperature -40 C ~ 60 C
Storage Humidity 20~95%
Dimensions(mm) 26X26(W*L)
Power Consumption 70mA
