Product name:Pixhawk Mini Version
Product code:HSM-191M

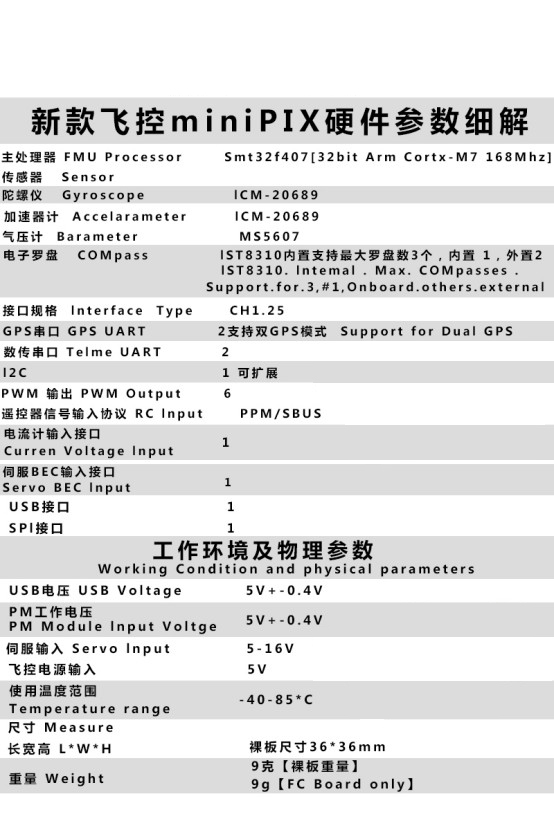

Specifications:
New official hardware platform, non-V246 version hardware! !
MINI PIX is selected from the FMUV2, FMUV 3, FMUV4, FMUV5, and ChibiOS special boards through the AutoPilot hardware library flight control platform for half a year. We are the domestic 1st to introduce this flight control platform and carry out secondary development. Development.
New open source hardware design with stable sensors
The stable ICM-20689/IST8310 sensor is used to improve its adaptability at low temperature. The barometer is the officially designated MS5607. Once again, the MINI PIX is not a V246 version of the PIX several years ago. The sensors use the FMUV5 platform. Same gyroscope + compass sensor
It belongs to secondary development. In view of the fact that the official has no longer open source of flight control circuit diagrams, this flight control declined to remind the schematic and PCB files.
1, 100% use Arduploit official firmware, 100% Missionplanner official ground station
2, 100% support Arduploit compatible with a variety of hardware (optical flow, RTK GPS)
3. Reserve a built-in expandable IMU interface to support the expansion of the second IMU module;
4, support up to 6 sets of PWM signal output, rich I / O port;
5, support dual GPS module, more use double external compass function, maximum support for 3 compass redundancy
6, support for multi-axis, helicopter, unmanned vehicles, unmanned ships, fixed wings (including vertical takeoff and landing).
